CAD drafting
Ready for manufacture.
Production-ready documentation
A well-prepared drawing package is essential for successful manufacture.
Whether working from an existing 3D model, legacy drawings, hand sketches, or marked-up PDFs, we produce clear and accurate documentation that provides manufacturers with the information they need to build with confidence.
Every drawing is prepared with clarity, consistency, and practical application in mind.

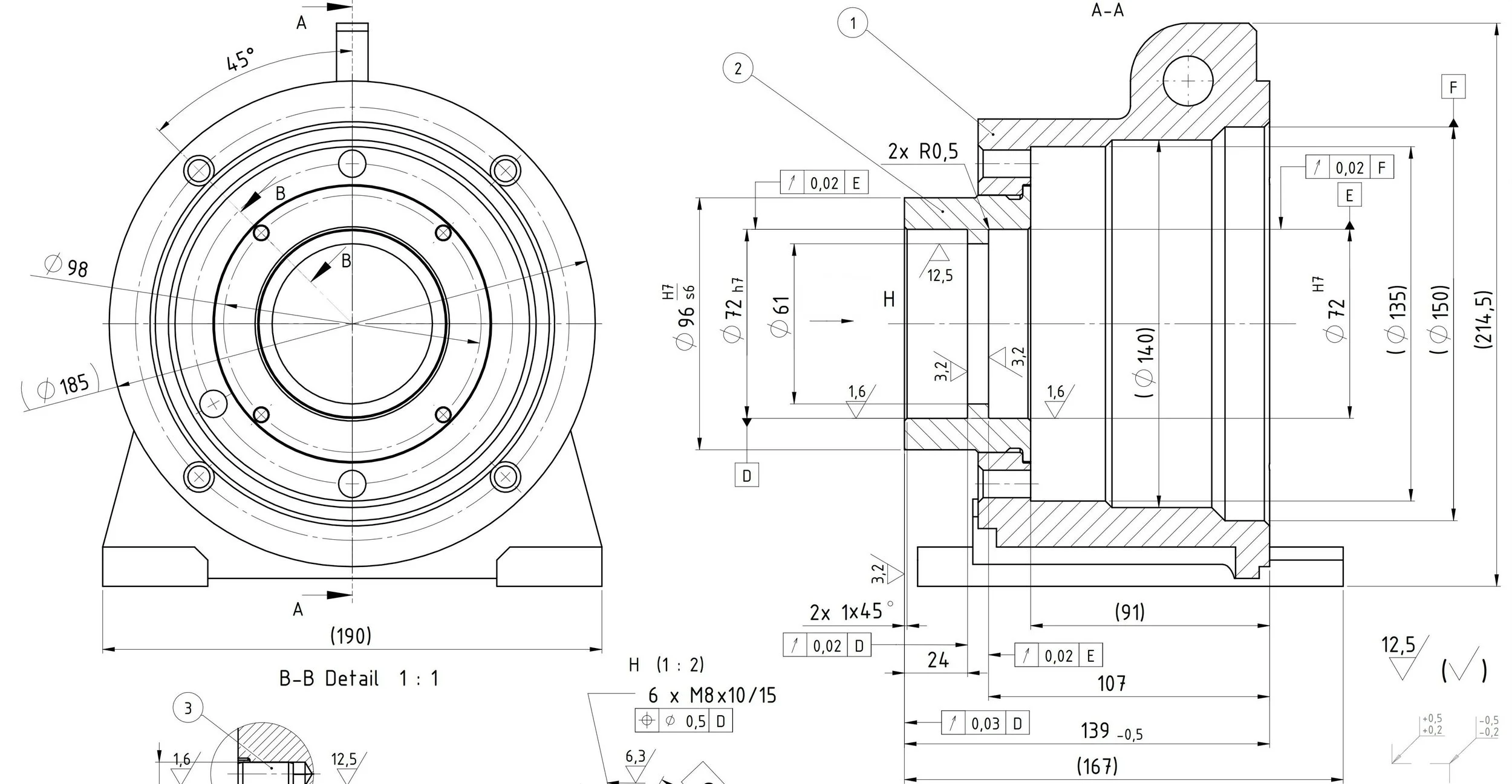

Manufacturing Drawings: Detailed production drawings including dimensions, tolerances, weld details, materials, and manufacturing notes.
Assembly Drawings: Comprehensive assembly documentation with exploded views, bills of materials, and installation information where required.

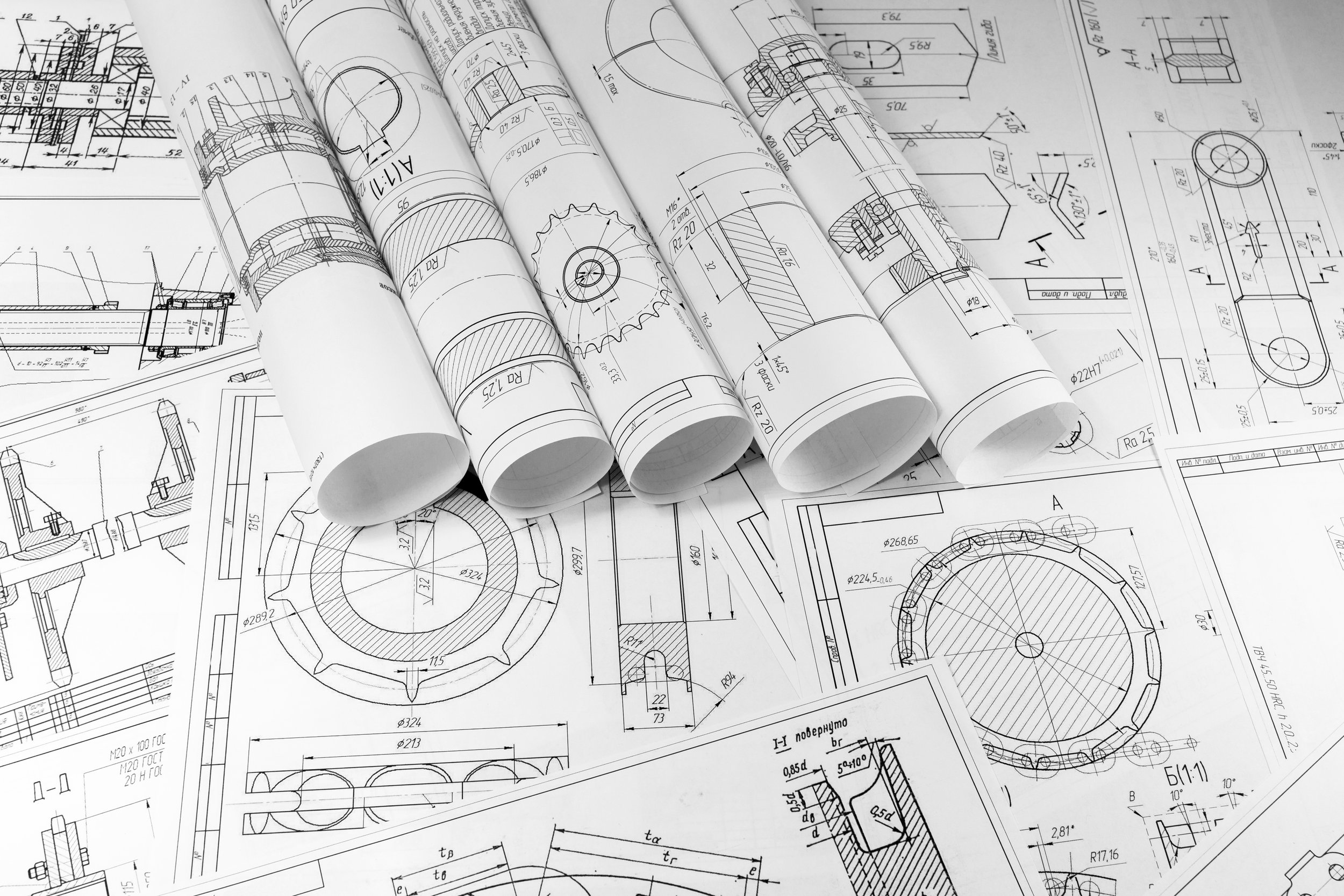

Drawings that communicate the design clearly
Engineering drawings are the primary means of communicating a design.
Poor documentation leads to questions, delays, manufacturing errors and unnecessary rework. Our approach focuses on producing drawing packages that communicate the design clearly, reducing the need for interpretation and repeated questions during manufacture.
Each drawing is prepared to the same engineering standard, whether it supports a new project or updates an existing set.
Drawing Conversions: Converting legacy paper drawings, PDFs, or obsolete CAD files into modern editable CAD formats.
Drawing Updates: Revising existing documentation to reflect design changes, manufacturing improvements, or as-built modifications.
Our Approach
-
Confirm the Design
We review the available information and define the documentation required.
-
Produce the Drawings
Drawings follow recognised standards with clear dimensions and consistent annotation.
-
Verify the Details
Each package receives a thorough check covering accuracy and all required information.
-
Supply the Drawing Package
Approved documentation is supplied in the required formats, ready for its intended use.
Need engineering drawings?
We produce accurate drawing packages from your existing models or source information, ready for manufacture and use on site.
-
Drawing packages are prepared with the workshop in mind, ensuring practical, easy-to-follow documentation.
-
Dimensions, tolerances, notes, and supporting information are carefully checked before issue.
-
Whether you need a single drawing updated or a complete manufacturing package, we can provide support that fits your project.
-
We can work from existing CAD models, legacy drawings, PDFs, hand sketches, or client templates, delivering documentation in the formats you require.
