A Guide to Sheet Metal Drawings

Reading Time: 6 minutes

A sheet metal drawing can be fully dimensioned and still leave the fabricator without a reliable definition of the part. The trouble usually begins when one drawing tries to control the finished component and the method used to cut its blank, without making clear which information takes priority. If the folded dimensions and flat pattern disagree, the workshop has to reconstruct the designer’s intention before production can continue.

The finished part should remain at the centre of the drawing. Its geometry determines whether it fits the assembly, while the flat pattern is a process-dependent route to that result. Bend allowance changes with the material and the way it is formed, so a development produced from a convenient CAD default may be geometrically tidy and physically wrong.

Good sheet metal documentation draws a clear line between design requirements and production information. It gives the fabricator enough detail to plan the work, while leaving process decisions with the people who understand the available machinery. That balance is what turns a drawing pack into something the workshop can use.

Start by defining the finished part

The final formed view carries the functional definition. It should show the overall size, flange positions, hole patterns and any feature that governs how the component locates against neighbouring parts. If a hole pattern must align with a machine frame, its position needs to relate to a functional datum rather than whichever edge happened to be easiest to select in CAD. The same principle applies to enclosure doors and mounting faces.

Dimensions need to make clear whether they refer to inside, outside or tangent geometry. A flange height taken to the theoretical sharp corner can produce a different interpretation from one taken to the outside face, particularly when the bend radius is large in relation to the material thickness. Drawing views should expose that distinction rather than rely on the fabricator recognising the modelling convention.

The 3D model also needs credible sheet metal geometry before the drawing is created. Bend reliefs require enough space to prevent tearing, holes need sensible clearance from bend zones, short flanges must suit the proposed tooling and closed returns need room to form. A part that unfolds successfully in CAD may still be impossible to hold or form in the expected sequence. Checking those constraints during design avoids sending the workshop a beautifully documented problem.

This is where the designer should involve the fabricator early. Available tooling and achievable bend geometry differ between workshops, especially across low-volume subcontract work. A brief conversation before release can establish the practical design rules for the job and prevent extensive revision after the first part has been cut.

Set the bend rules carefully

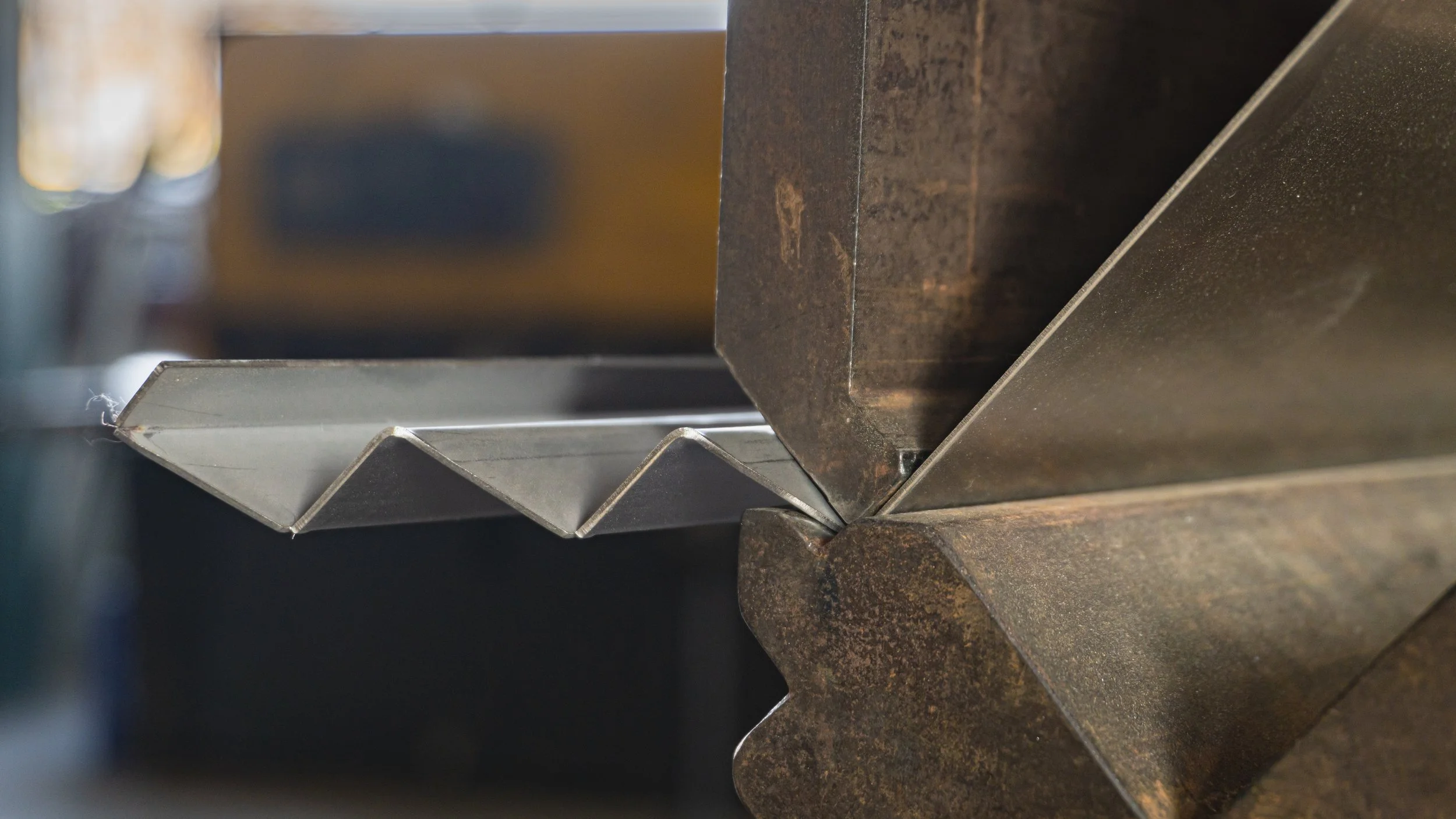

Every flat development relies on an assumption about how material behaves through a bend. The neutral axis shifts towards the inside of the bend, and its assumed position is commonly expressed through a K-factor. CAD systems can also calculate the development using a bend allowance, bend deduction or values taken from a bend table. The current SOLIDWORKS documentation sets out these alternative bend calculation methods, which is useful precisely because no single value suits every process.

Material grade and thickness influence the result, while the selected tooling changes the radius that forms in practice. Bend angle and grain direction can alter the behaviour further and springback has to be allowed for by the forming process. Treating the K-factor as a property that belongs only to the CAD model hides those dependencies. It is an empirical input that should reflect the method used to make the part.

The project therefore needs a clear decision about who controls the development. A fabricator producing the flat from the approved formed model can apply proven bend data from their own machines. If the designer supplies the controlling DXF, the bend basis must be agreed and the resulting part should be validated before a batch is released. Either route can work, provided ownership is explicit.

Problems arise when the flat size and folded size are both toleranced as independent requirements. Consider a U-shaped cover whose overall width and flange heights control its fit. If the blank width is also fixed without reference to the same bend data, normal variation in forming can make the requirements incompatible. The drawing should control the finished geometry and identify the approved development method, rather than ask the workshop to satisfy two competing definitions.

Flat patterns need a proper check

A flat pattern should be treated as controlled production data, even when it is supplied only to help with quotation. The export needs the correct units and scale, with a closed outer profile and no duplicated entities. Internal cut-outs must be complete, while centre marks, dimensions and construction geometry should be removed unless the fabricator has asked for them on defined layers. A line intended to show a bend can become an unwanted cut when the receiving software interprets it differently.

The DXF should be opened independently after export. This simple check catches missing profiles, unsupported splines, unintended lines and geometry left far from the part origin. It also confirms that the file is genuinely one-to-one rather than relying on the drawing-sheet scale. The folded model looking correct provides no evidence that the exported cutting data is clean.

Bend direction must have a defined point of view. An instruction such as “UP” only has meaning when the flat-pattern face and viewing direction are obvious, so bend notes or a bend table should be tied to the displayed view. Autodesk’s guidance on sheet metal annotations shows how bend identifiers can relate drawing notes and tables to individual bend centre lines. Numbering can also help where sequence matters, although the fabricator should retain control of the actual forming method unless the design depends on it.

Every exported file needs a visible relationship to the approved part revision. A filename alone is weak control because old copies are easily retained in nesting folders or attached to purchase orders. The release record should make it possible to confirm which model and drawing produced the flat, along with whether that development is approved for manufacture or supplied for reference.

Materials & finishes

“Mild steel” and “stainless steel” do not define a material. The drawing or parts list should state the grade and nominal thickness, together with the applicable material standard where required. Temper or condition matters for some aluminium and stainless products, while the specified surface finish can affect which sheet the fabricator purchases. If rolling direction or a visible grain must follow the part, its orientation should be clear on the formed view and flat data.

Finish requirements need similar precision. A powder-coated component may require a colour reference and an agreed preparation system, with coating thickness or masking identified where they affect fit. Brushed stainless can show obvious mismatch when adjacent panels are cut with different grain directions. Protective film, edge condition, cosmetic-face requirements and brushing direction should be stated where they affect acceptance, rather than left to a note saying “finish as required”.

Bought-in hardware should be specified by an unambiguous part reference or by enough information for an approved equivalent to be selected. Pressed inserts depend on hole size and sheet thickness, and the installation stage may affect the chosen finish. Countersinks or formed features need the side identified on the drawing because a mirrored interpretation can scrap an otherwise correct panel.

Welded sheet metal assemblies require restraint in the drawing office. Excess weld length can pull thin material out of shape, while a vague callout leaves the joint requirement unresolved. Weld location and size should be defined using a consistent system such as ISO 2553:2019, with cosmetic finishing or leak requirements stated separately where they apply. The likely distortion and access for the welding process should already have influenced the design; our article on designing welded fabrications examines that judgement in more detail.

Controlled documents

A sheet metal package usually contains a native model, a PDF drawing and an NC/DXF file for cutting. The bill of materials may sit in an assembly drawing or a separate system, while hardware data can arrive from another source. These documents still describe one component, so their part number and revision need to agree. A thickness change that reaches the drawing but not the DXF can alter both the blank and the bend development.

Revision notes should explain what changed in language the fabricator can act on. “Updated model” gives no indication whether material already cut can still be used, whereas a note identifying a moved hole pattern or revised flange height allows work in progress to be checked. Superseded files should be withdrawn from the active issue rather than left beside the current set with similar names.

The final review should follow the component through production. Can the fabricator identify the controlling formed geometry, understand the bend basis and trace the flat pattern to the same revision? Are material and finish requirements complete, and can the critical dimensions be inspected from the stated datums? Those questions reveal far more than checking whether every blank area of the sheet contains a note.

Reliable drawings leave fewer decisions to chance. They define the finished part clearly, use bend data that reflects the proposed process and keep every production file connected to one controlled release. The page may contain less information than an over-dimensioned alternative, yet the workshop can quote and manufacture from it with greater confidence.
