Eddy Current Separator Access Platform
SECTOR
Bulk Materials, Recycling
Design of a steel support and access platform for a STEINERT eddy current separation system. The structure incorporates equipment support, maintenance access and vibration isolation within a single compact installation.
SERVICE
Design Engineering
MATERIAL
Mixed Feedstock
YEAR
2026
Project at a glance
-
Supporting the Complete System

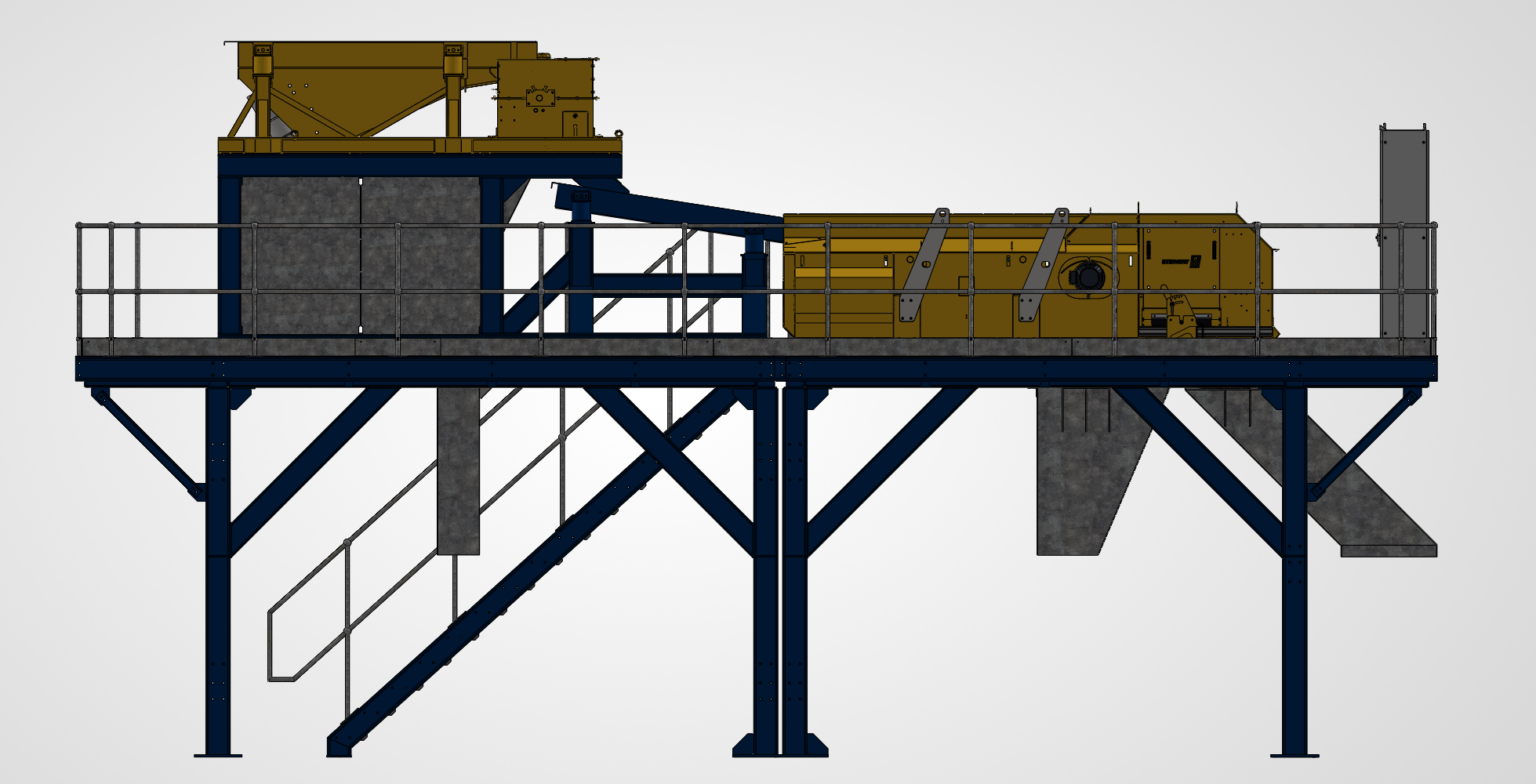

Separate structures were required to carry the separator and vibrating feeder to account for operational vibration.
The arrangement also needed clear access around both machines without obstructing material transfer or maintenance activities.
-
Designed Around the Equipment

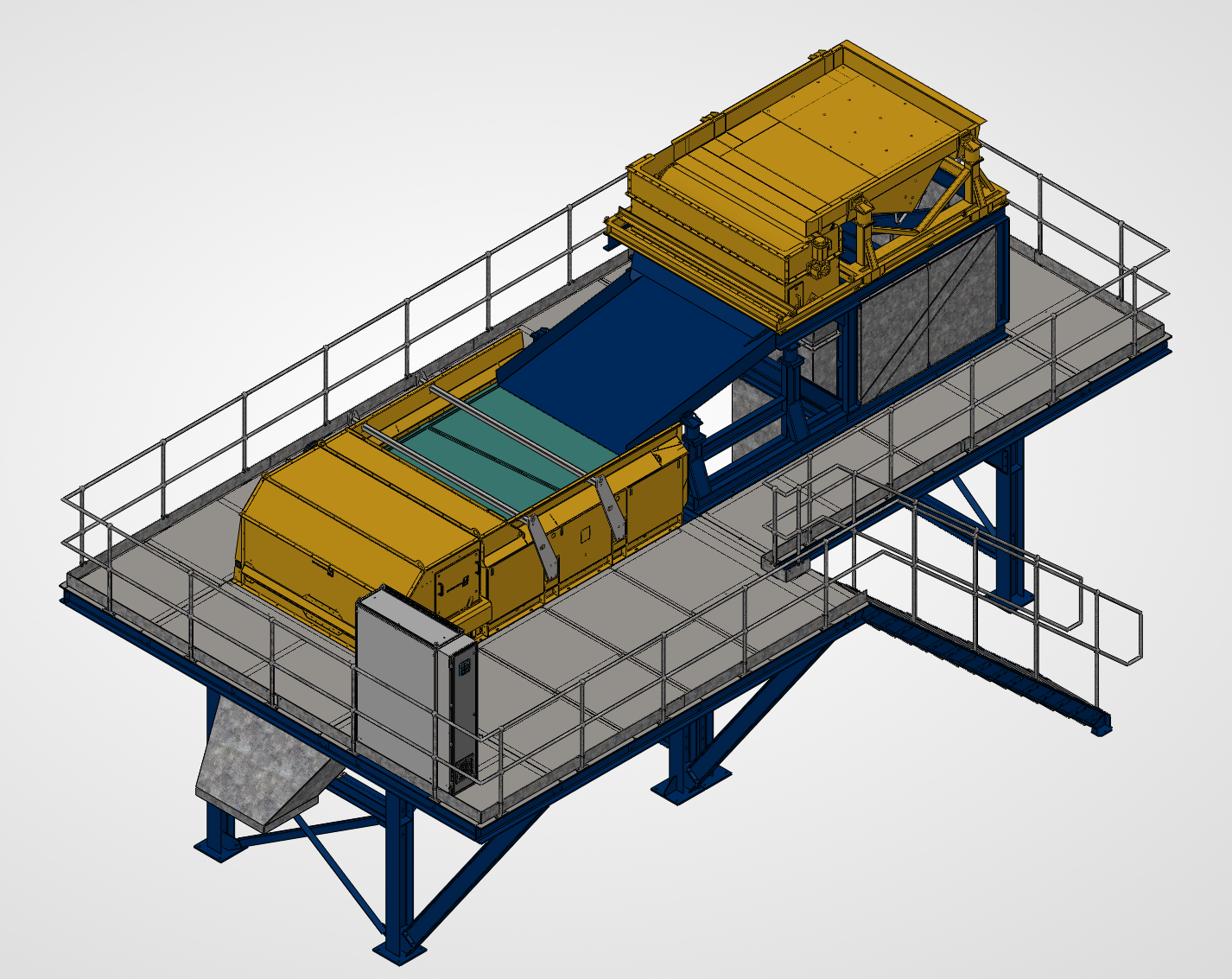

ATLUS developed the platform from the manufacturer’s machine geometry, support points and required service clearances.
Floor levels, primary steelwork and bracing were coordinated with the feeder, separator, discharge chutes and surrounding plant.
-
Ready for Manufacture and Installation

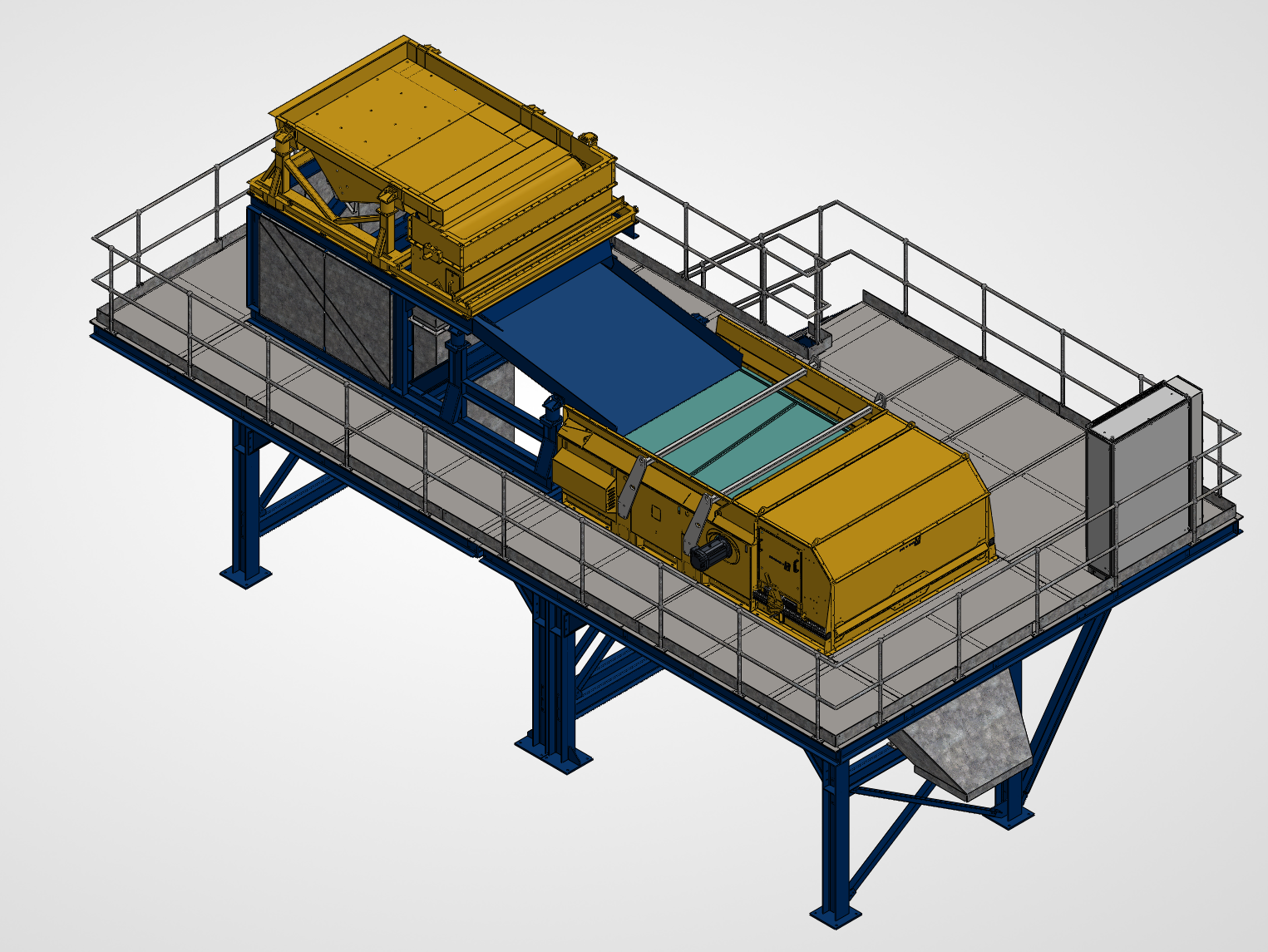

The final design provides continuous access for inspection, belt-change and routine maintenance.
Machine positions, structural connections and fabrication details were defined to simplify manufacture and reduce uncertainty during installation.
Key Outcomes
-
Seperate structures isolate vibrations from machine and electronics
-
3 distinct material outputs allow for flexible downstream processing arrangements
-
2300mm belt-removal corridor enables replacement in just 10 minutes
-
Installed from prefabricated assemblies in 3 days, with zero site steelwork modifications
