DFM vs DFA: Learning the difference.

Reading Time: 5 minutes

Design for Manufacture and Design for Assembly are often grouped together as though the second term simply reinforces the first. Both aim to reduce avoidable cost and difficulty, but they examine the design from different positions. DFM looks closely at how a component will be produced, while DFA follows what happens when that component reaches the person building the product.

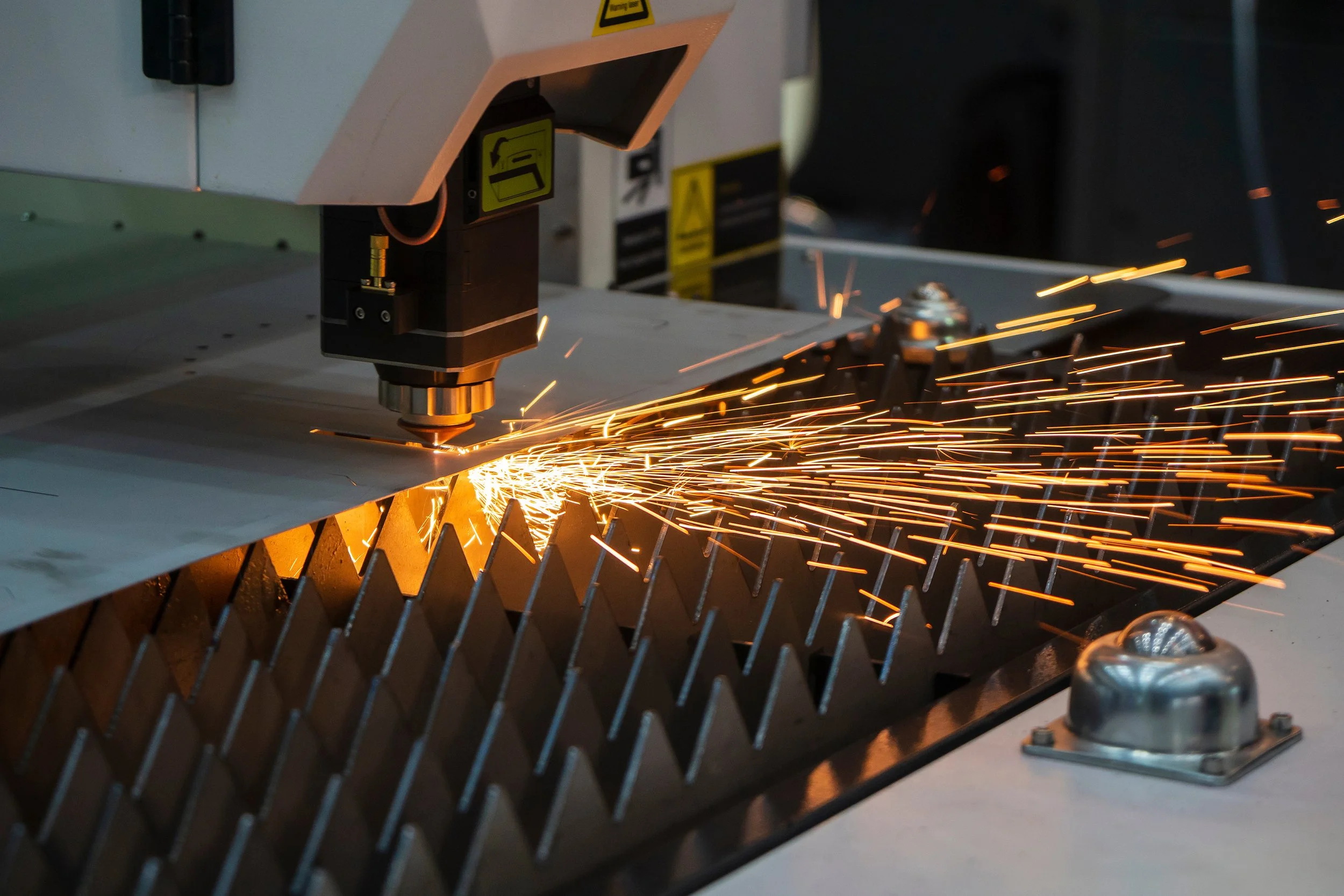

The difference becomes important when a change helps one stage and causes trouble in the other. Splitting a complex machined component into several laser-cut plates may reduce individual part cost, yet the resulting assembly could need more setting and welding followed by additional inspection. Combining several brackets into one casting can remove assembly work, but the tooling commitment may be difficult to justify at low volume.

A design team that applies only one perspective can optimise a part while making the product worse. Good design for manufacture and assembly (DFMA) work holds both views together and accepts that the best answer is usually a considered compromise, not the lowest number in one column of a costing sheet. The trade-off has to be resolved at product level, where the consequences of both decisions can be seen together.

Two different questions

DFM asks whether the proposed component suits the process intended to make it. The answer depends on geometry, material and realistic tolerances, along with the production quantity that makes a particular method economical. A turned shaft designed around available bar sizes may waste less material, while a folded bracket can avoid secondary machining when its bend radii and hole positions suit the chosen tooling.

DFA considers the interfaces between those components. The designer has to understand how each item will be handled and located before it is secured, with enough space for the tools and people involved. A bolt may be inexpensive and easy to source, but it remains a poor assembly choice when the head cannot be held or the tightening tool clashes with the surrounding frame.

These questions need different evidence. A manufacturing review may compare cycle time and material yield, whereas an assembly review benefits from a credible build sequence and input from the people expected to carry it out. Combining the reviews prevents the drawing office from passing difficulty between the machine shop and the assembly area without reducing the total effort.

The distinction also explains why DFM and DFA should begin before detailed drawings. Once a product architecture has been divided into fixed modules and major interfaces, many of the most valuable assembly choices have already been made. Moving a hole or relaxing a tolerance can still help, although it cannot recover the opportunity to arrange the product around a simpler build.

Cheap parts, expensive products

Part quotations are easy to compare, which makes them an attractive measure of design improvement. Assembly cost is less visible because it can be spread across fitting time, lifting equipment, inspection and the disruption caused by missing or incorrect items. A saving achieved on the component drawing may therefore reappear somewhere else in the production plan.

Consider a large fabricated guard that has been divided into smaller panels so each piece can be made on standard machinery. The change may improve material utilisation and simplify transport, which are valid DFM gains. If the panels then require awkward alignment around equipment already in place, the saving can be consumed by extra brackets and lengthy adjustment during installation.

The opposite problem appears when DFA is treated as a demand to combine everything. A single complex component can remove fasteners and assembly operations, yet require bespoke tooling or a process that only one supplier can provide. It may also become expensive to replace when a small area wears, forcing the owner to discard a large part that was originally celebrated for reducing the bill of materials.

Cost should be followed through the complete route. The useful comparison includes the parts and the work needed to turn them into a tested product, with installation considered where it forms part of delivery. For industrial equipment, later access and component replacement can easily outweigh a small saving achieved during the first build.

Good design is often surprisingly simple

Reducing part count is one of the best-known DFA principles because every separate item has to be specified, purchased, stored and brought to the correct point in the build. Fewer parts can also remove interfaces where alignment is lost or fixings loosen. Those benefits are real, but a lower number is an outcome to investigate rather than a target to chase in isolation.

Some parts exist because separation serves a useful purpose. A replaceable wear liner protects a more expensive structure, while a removable cover provides access without disturbing the equipment around it. Combining either item into the main component would make the assembly list shorter while reducing the value of the product.

Standardisation often produces a better result than elimination. Reusing an existing fastener size or bearing arrangement can simplify purchasing and reduce the number of tools needed during assembly. Common interfaces also help a product family share modules, provided the standard detail still suits the loads and available space rather than being forced into every application.

Self-locating features are equally valuable. A tab or pilot can establish position before the fasteners are tightened, reducing dependence on jigs and manual measurement. The feature should still suit the manufacturing process and allow enough clearance for reliable assembly, because a nominally perfect location that jams under normal variation has solved very little.

Account for the assembly sequence

CAD confirms that components can occupy their final positions, but the assembly team needs a workable route to get them there. Parts may require temporary support while connections are made, and the tool path can be more restrictive than the clearance around the fastener itself. A model can show a bolt entering a hole without revealing that a gearbox already installed in the previous operation blocks the installer’s hand.

The sequence should be tested from the first stable component onwards. Each step needs a clear way to orient the part and hold it safely until the connection is secure, with lifting provisions established where manual handling is unsuitable. Symmetrical parts deserve particular attention because they can often be fitted incorrectly while still appearing plausible. A small locating difference can prevent that error more reliably than another note in the work instruction.

Tolerance decisions belong in the same review. Variation across several interfaces can accumulate until the final component will not fit, even though every individual part satisfies its drawing. Functional datums and a deliberate tolerance stack give the designer a way to control that risk without applying tight limits everywhere. Where adjustment is required, it should be provided intentionally rather than discovered when the fitter reaches for a drill.

Service work is another assembly sequence, carried out later and usually under less convenient conditions. The technician may be working around guards or neighbouring equipment, often with poorer access than the original build area provided. Parts expected to wear should be reachable with ordinary tools and removable without dismantling unrelated systems. Our article on maintainability in processing equipment explores why that access deserves attention before the machine reaches site.

Conduct a review early

DFMA reviews work best while alternative concepts are still affordable. The design team should bring manufacturing and assembly experience into the conversation before suppliers receive a finished pack and are asked to make it cheaper. A fabricator can explain where a different fold or weld detail would remove work, while an assembler may identify an access problem that remains invisible in a static model.

The review needs a clear measure of improvement. Component price should be considered alongside the work required to assemble the product, while any dedicated tooling needs separate justification. Quality risk matters too: a process that depends on repeated manual alignment may produce more variation than a design that locates itself before fastening. Comparing the complete route keeps the team focused on the product rather than celebrating an isolated saving.

ISO 8887-1:2017 treats design output across manufacturing, assembly, disassembly and end-of-life processing. That wider scope is a useful reminder that the design continues to create consequences after the first component has been made. Documentation should carry the decisions into production, but the important work happens earlier, when the geometry and product architecture can still respond.

DFM and DFA are most useful as two connected views of the same design. One keeps each component grounded in a credible manufacturing process, while the other tests whether those components can become a product without avoidable effort. When the views disagree, the design team has found a trade-off that needs engineering judgement rather than another slogan about reducing cost.
